Supertex Round Sling
PRODUCT
생산에 필요한 설비들을 자체 개발하여 최고 품질의 제품을 생산하는 기업 유림 R&S입니다.

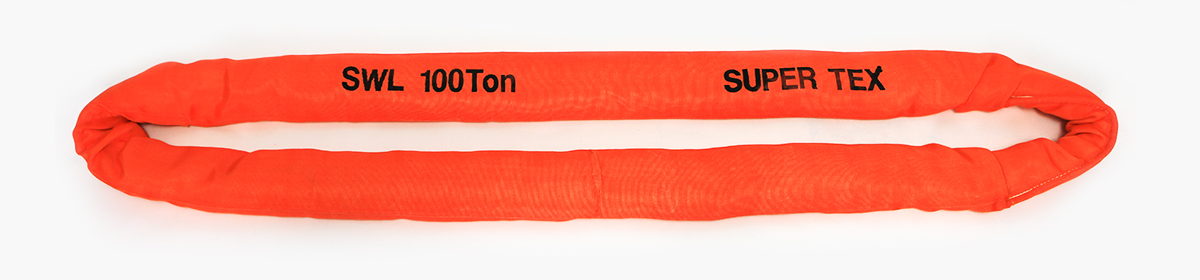

Supertex Round Sling
제품특징
- 물보다 비중이 높음(1.380)
- 융점이 높음(505℃)
- 자외선에 약함
사용한계하중
| Color [Product Code] |
SWL [Safety Working Load] |
Working Load Limits [Ton] | S.F Safety Factor |
|||
|---|---|---|---|---|---|---|
 100% |
 80% |
 200% |
 140% |
|||
| YL-K-1 | 1 | 1 | 0.8 | 2 | 1.4 | 7:1 |
| YL-K-2 | 2 | 2 | 1.6 | 4 | 2.8 | 7:1 |
| YL-K-3 | 3 | 3 | 2.4 | 6 | 4.2 | 7:1 |
| YL-K-4 | 4 | 4 | 3.2 | 8 | 5.6 | 7:1 |
| YL-K-5 | 5 | 5 | 4 | 10 | 7 | 7:1 |
| YL-K-6 | 6 | 6 | 4.8 | 12 | 8.4 | 7:1 |
| YL-K-7 | 7 | 7 | 5.6 | 14 | 9.8 | 7:1 |
| YL-K-8 | 8 | 8 | 6.4 | 16 | 11.2 | 7:1 |
| YL-K-9 | 9 | 9 | 7.2 | 18 | 12.6 | 7:1 |
| YL-K-10 | 10 | 10 | 8 | 20 | 14 | 7:1 |
| YL-K-15 | 15 | 15 | 12 | 30 | 21 | 7:1 |
| YL-K-20 | 20 | 20 | 16 | 40 | 28 | 7:1 |
| YL-K-25 | 25 | 25 | 20 | 50 | 35 | 7:1 |
| YL-K-30 | 30 | 30 | 24 | 60 | 42 | 7:1 |
| YL-K-35 | 35 | 35 | 28 | 70 | 49 | 7:1 |
| YL-K-40 | 40 | 40 | 32 | 80 | 56 | 7:1 |
| YL-K-45 | 45 | 45 | 36 | 90 | 63 | 7:1 |
| YL-K-50 | 50 | 50 | 40 | 100 | 70 | 7:1 |
| YL-K-55 | 55 | 55 | 44 | 110 | 77 | 7:1 |
| YL-K-60 | 60 | 60 | 48 | 120 | 84 | 7:1 |
| YL-K-65 | 65 | 65 | 52 | 130 | 91 | 7:1 |
| YL-K-70 | 70 | 70 | 56 | 140 | 98 | 7:1 |
| YL-K-75 | 75 | 75 | 60 | 150 | 105 | 7:1 |
| YL-K-80 | 80 | 80 | 64 | 160 | 112 | 7:1 |
| YL-K-85 | 85 | 85 | 68 | 170 | 119 | 7:1 |
| YL-K-90 | 90 | 90 | 72 | 180 | 126 | 7:1 |
| YL-K-95 | 95 | 95 | 76 | 190 | 133 | 7:1 |
| YL-K-100 | 100 | 100 | 80 | 200 | 140 | 7:1 |
| YL-K-120 | 120 | 120 | 96 | 240 | 168 | 7:1 |
| YL-K-150 | 150 | 150 | 120 | 300 | 210 | 7:1 |
| YL-K-200 | 200 | 200 | 160 | 400 | 280 | 7:1 |
| YL-K-250 | 250 | 250 | 200 | 500 | 350 | 7:1 |
| YL-K-300 | 300 | 300 | 240 | 600 | 420 | 7:1 |
포스코(슈퍼텍스 라운드슬링) 제품 코드
| Color [Product Code] |
SWL [Safety Working Load] |
Working Load Limits [Ton] | S.F Safety Factor |
|||
|---|---|---|---|---|---|---|
100% |
80% |
200% |
140% |
|||
| YDA-1 | 1 | 1 | 0.8 | 2 | 1.4 | 7:1 |
| YDA-2 | 2 | 2 | 1.6 | 4 | 2.8 | 7:1 |
| YDA-3 | 3 | 3 | 2.4 | 6 | 4.2 | 7:1 |
| YDA-4 | 4 | 4 | 3.2 | 8 | 5.6 | 7:1 |
| YDA-5 | 5 | 5 | 4 | 10 | 7 | 7:1 |
| YDA-6 | 6 | 6 | 4.8 | 12 | 8.4 | 7:1 |
| YDA-7 | 7 | 7 | 5.6 | 14 | 9.8 | 7:1 |
| YDA-8 | 8 | 8 | 6.4 | 16 | 11.2 | 7:1 |
| YDA-9 | 9 | 9 | 7.2 | 18 | 12.6 | 7:1 |
| YDA-10 | 10 | 10 | 8 | 20 | 14 | 7:1 |
| YDA-15 | 15 | 15 | 12 | 30 | 21 | 7:1 |
| YDA-20 | 20 | 20 | 16 | 40 | 28 | 7:1 |
| YDA-25 | 25 | 25 | 20 | 50 | 35 | 7:1 |
| YDA-30 | 30 | 30 | 24 | 60 | 42 | 7:1 |
| YDA-35 | 35 | 35 | 28 | 70 | 49 | 7:1 |
| YDA-40 | 40 | 40 | 32 | 80 | 56 | 7:1 |
| YDA-45 | 45 | 45 | 36 | 90 | 63 | 7:1 |
| YDA-50 | 50 | 50 | 40 | 100 | 70 | 7:1 |
| YDA-55 | 55 | 55 | 44 | 110 | 77 | 7:1 |
| YDA-60 | 60 | 60 | 48 | 120 | 84 | 7:1 |
| YDA-65 | 65 | 65 | 52 | 130 | 91 | 7:1 |
| YDA-70 | 70 | 70 | 56 | 140 | 98 | 7:1 |
| YDA-75 | 75 | 75 | 60 | 150 | 105 | 7:1 |
| YDA-80 | 80 | 80 | 64 | 160 | 112 | 7:1 |
| YDA-85 | 85 | 85 | 68 | 170 | 119 | 7:1 |
| YDA-90 | 90 | 90 | 72 | 180 | 126 | 7:1 |
| YDA-95 | 95 | 95 | 76 | 190 | 133 | 7:1 |
| YDA-100 | 100 | 100 | 80 | 200 | 140 | 7:1 |
| YDA-120 | 120 | 120 | 96 | 240 | 168 | 7:1 |
| YDA-150 | 150 | 150 | 120 | 300 | 210 | 7:1 |
| YDA-200 | 200 | 200 | 160 | 400 | 280 | 7:1 |
| YDA-250 | 250 | 250 | 200 | 500 | 350 | 7:1 |
| YDA-300 | 300 | 300 | 240 | 600 | 420 | 7:1 |
